Oase ProfiPlane LED L RGB Spot / DMX / 02 | 72707

Name: Oase ProfiPlane LED L RGB Spot / DMX / 02 | 72707 | PASES Aqua Pty Ltd
SKU: 11OS520
Price: 829.40 AUD
Availability: BackOrder

Available at our wholesale warehouse and will be dispatched within one week.

$829.40

SKU:11OS520 Category:Pond Lighting and Accessories

The ProfiPlane LED L RGB Spot / DMX / 02 is the powerful, robust RGB-LED light with flange and hole D=22mm and a beam angle of 16°, 837 lumens.

Characteristic
- Strobe effect
- DMX/RDM-capable in combination with the Underwater LED Driver Compact (70468)
- Flat surface due to stepped glass
- Wet and dry installation – waterproof IP68 / 4m
- Temperature controlled high class brand LED
- 1 m cable length with patented, watertight plug connections
- For fresh-, pool- and sea water

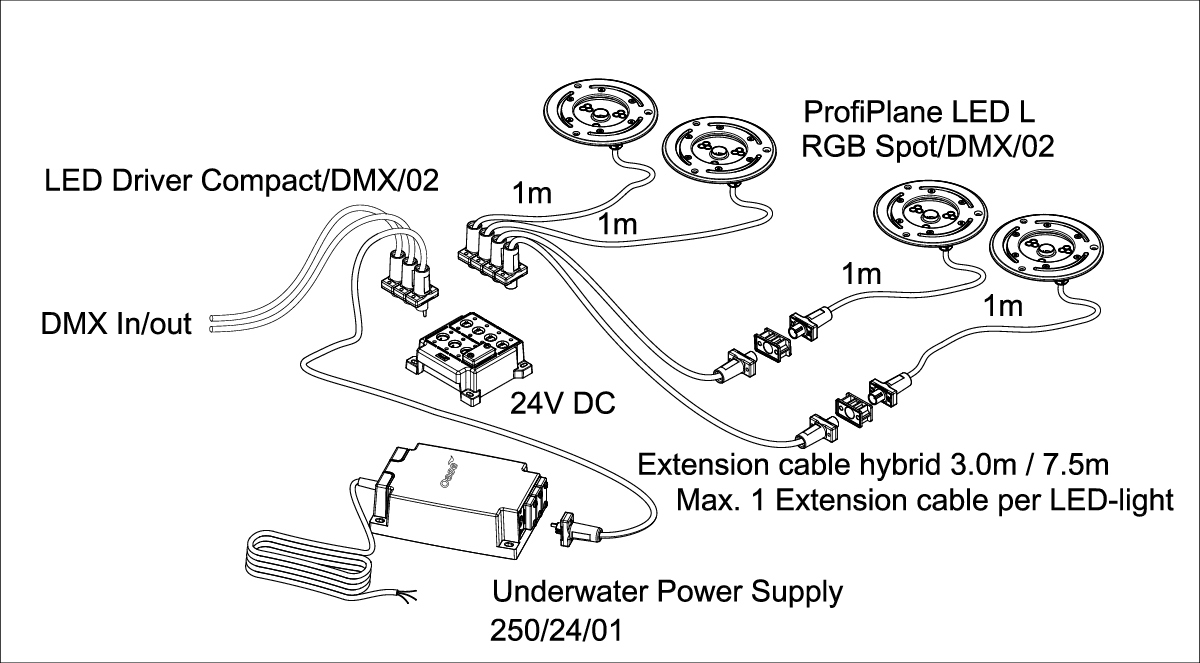

- External electronic in a separate control box / junction box – waterproof connector, easy to connect.
- Individual measurement of the basic colours of the LED-RGBW lights and the use of the Underwater LED Driver /DMX/02 guarantees equal brightness of all lights in the system and a homogeneous colour combination
- Galvanic isolation between the DMX and 24V DC power
- Lifetime: 100,000 h*
* In case of underwater application, an intelligent heat management and quality LED enables a lifetime of up to 100,000 hrs. This claim does not entitle to a guarantee.

Technical Data

Certificate		MET US + C
Number of DMX channels	Units	5
DMX Channel 1		red
DMX Channel 2		green
DMX Channel 3		blue
DMX Channel 4		strobe
DMX Channel 5		dimmable
Luminous flux with all on	lm	837
Luminous flux red	lm	240
Luminous flux green	lm	460
Luminous flux blue	lm	137

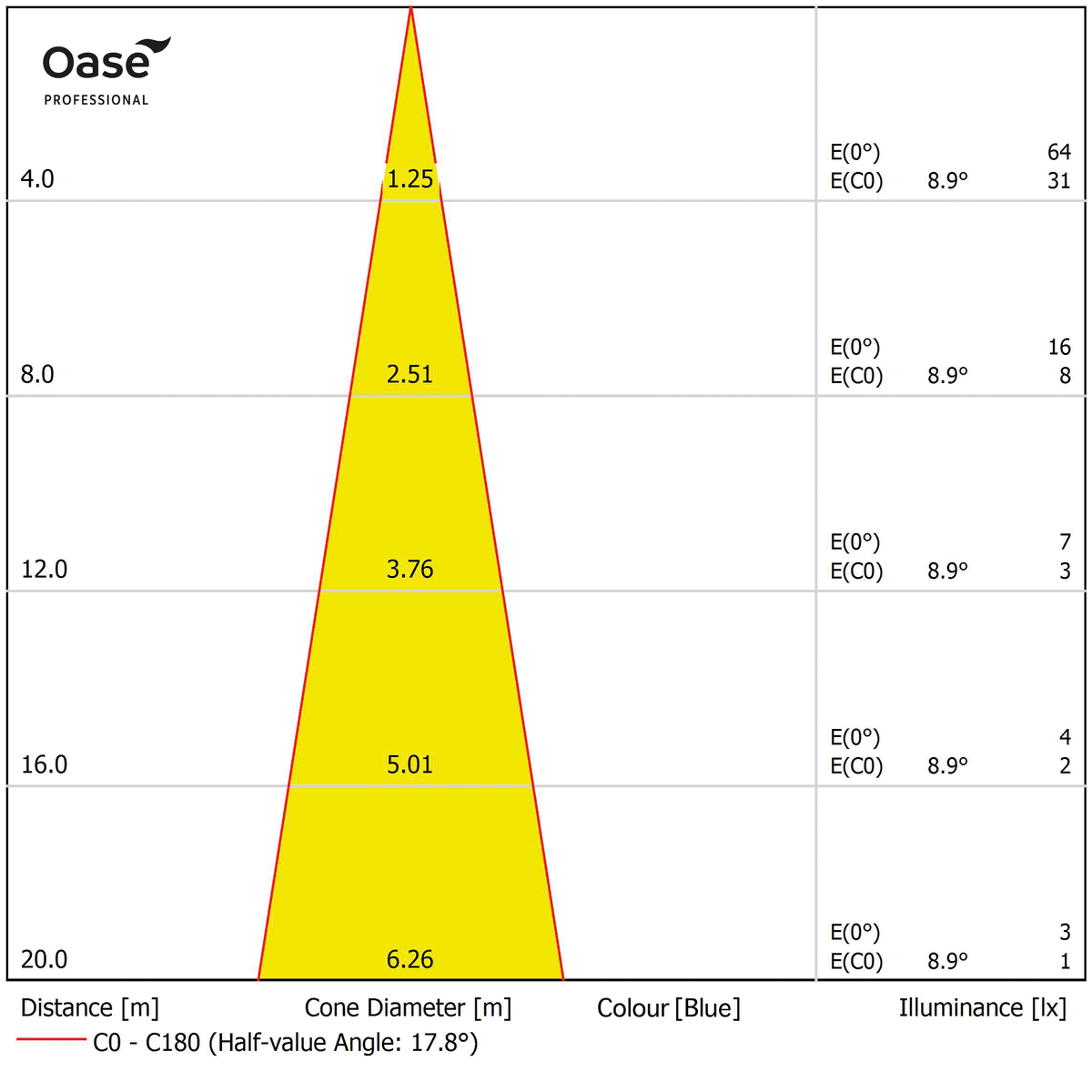

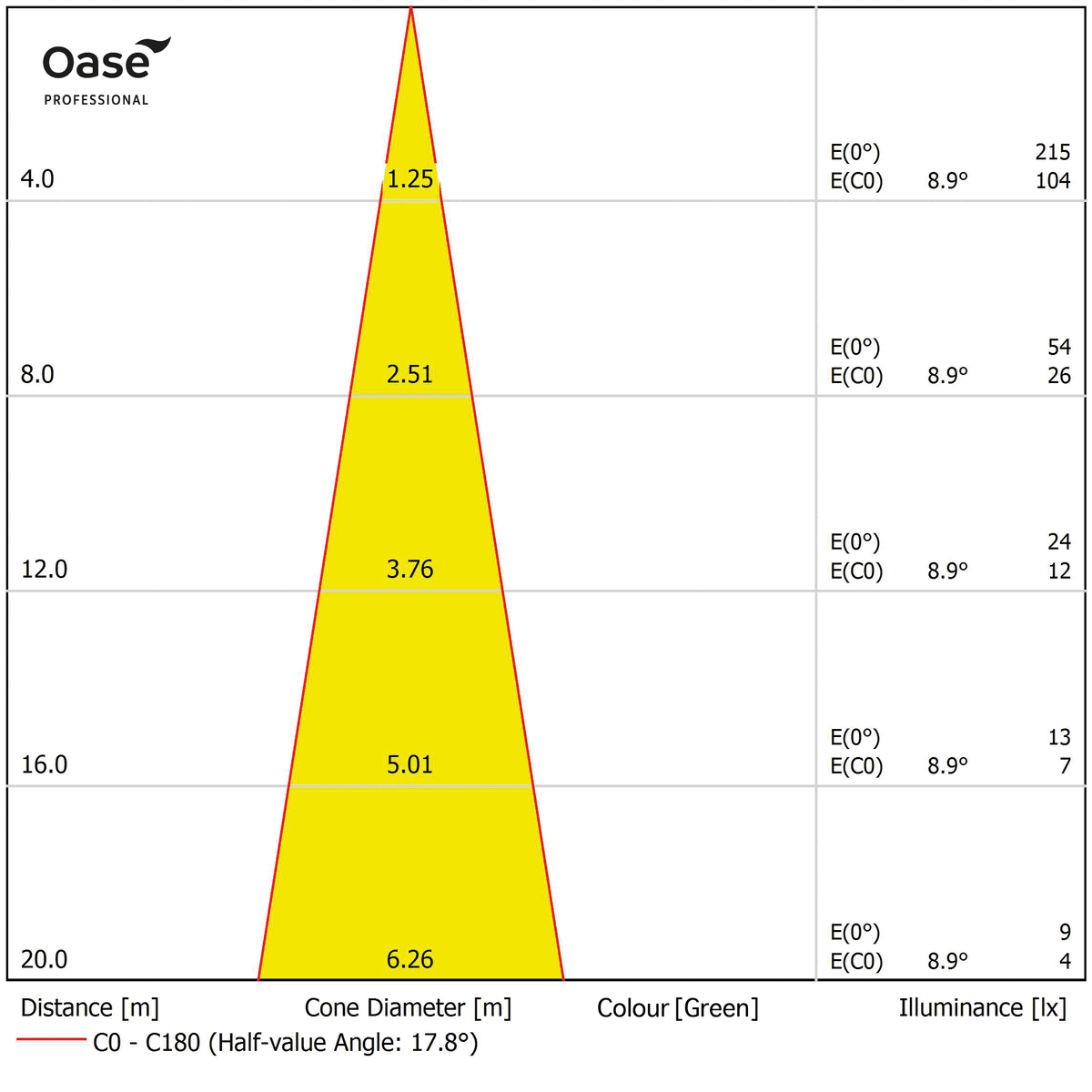

Beam angle		16 Degrees (± 2)
Stroboscope effect		0-25 Hz
Weighted energy consumption	kWh/1000h	24
Rated voltage		24 V / DC
Power consumption	W	21
Rated current	A	0.95
Dim frequency	Hz	2800
Power connection type		Hybrid plug
Power cable length	m	1.00
Protection class		IP68; 4 m

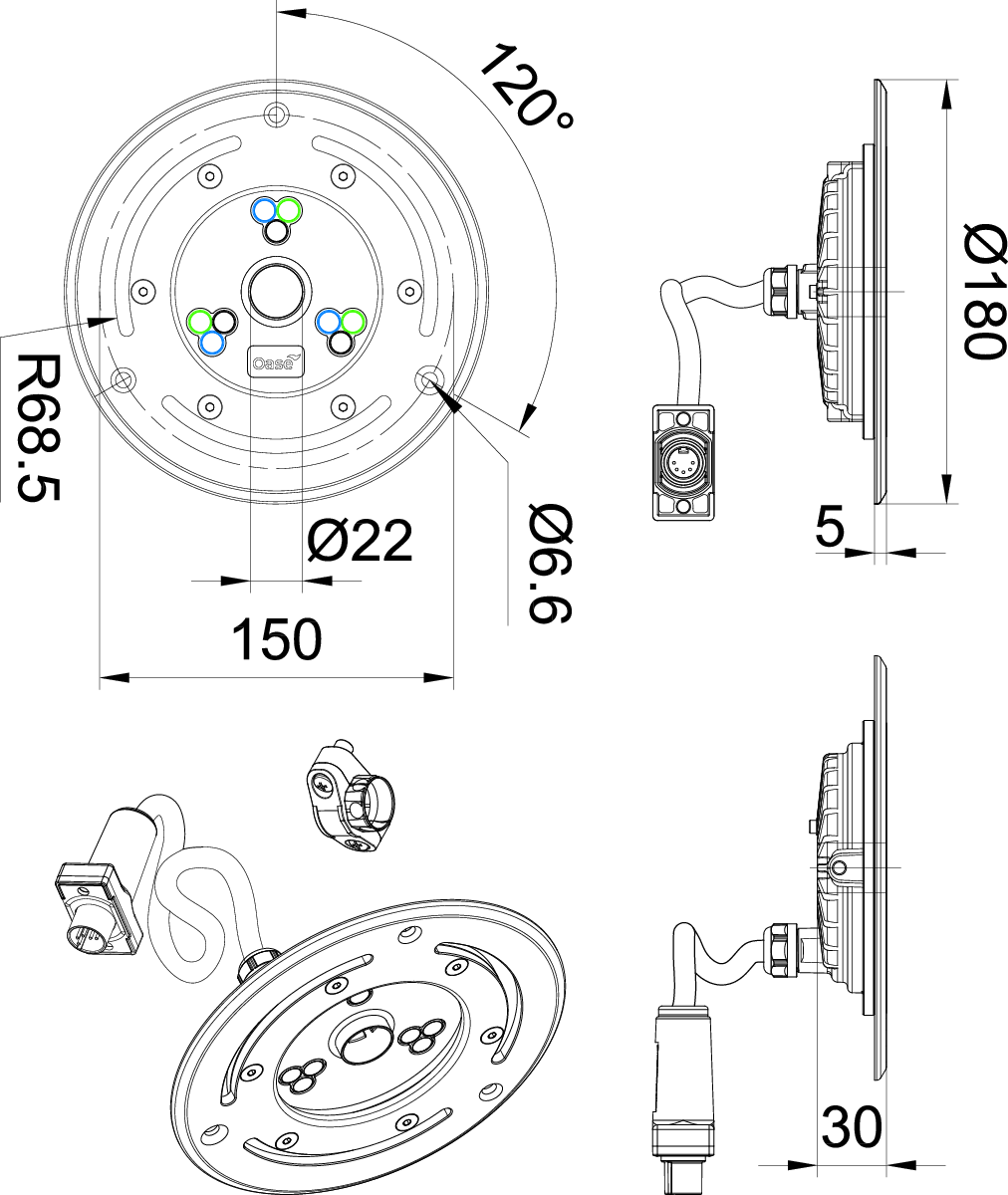

Dimensions (Ø x H)	mm	180 x 30
Material		Stainless steel 1.4404 (AISI 316L)
Net weight	kg	1.60

Technical Details

Weight	2 kg
Dimensions	18 × 3 cm
