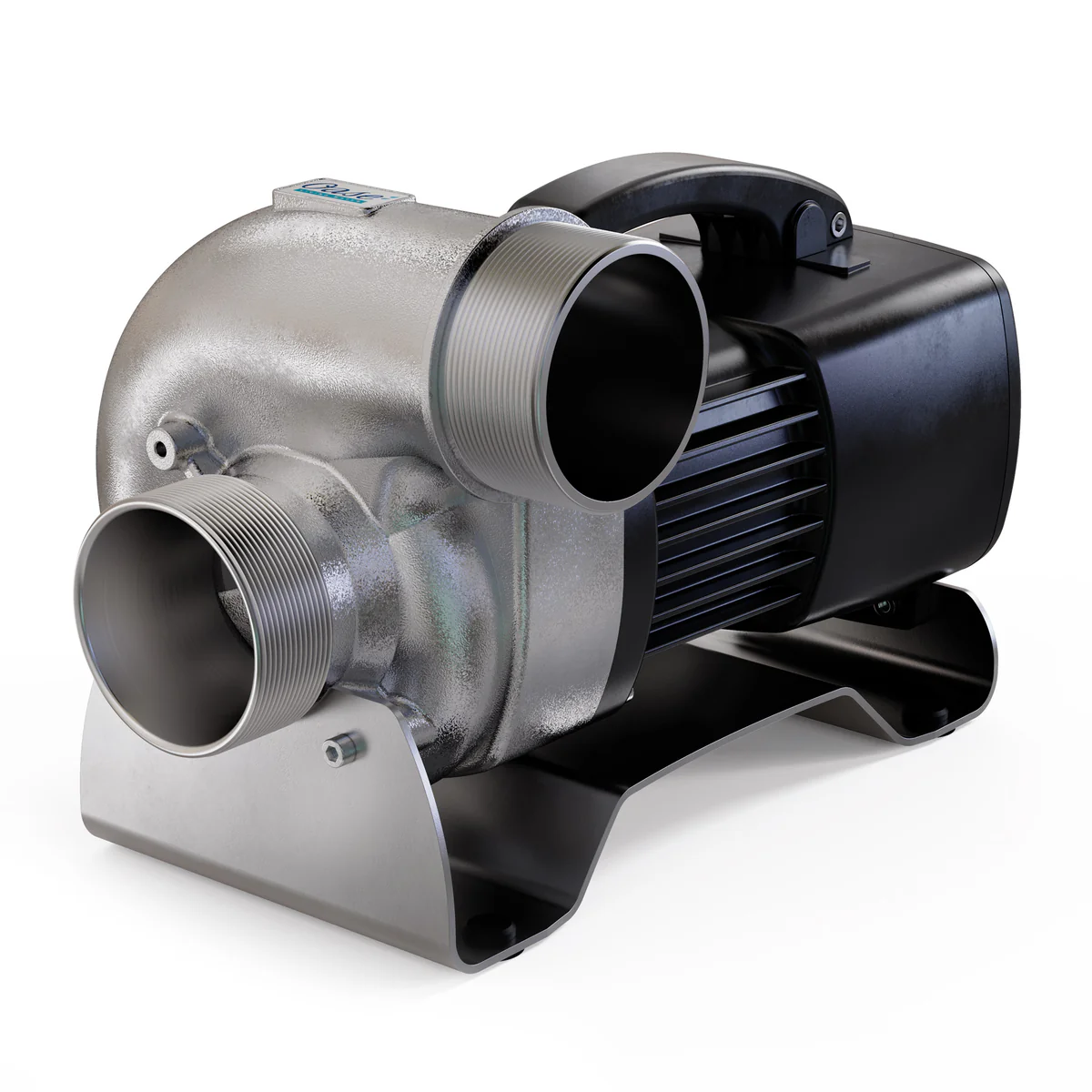

Great performance for large bodies of water: The robust power pack with pump housing made of cast stainless steel as well as impeller shaft and bearings made of high-quality SIC ceramics is suitable for large gravity filter systems with or without koi stock.
Coarse dirt is conveyed up to 6 mm grain size. This energy miracle can easily be controlled by app from the local network using optional accessories. The pumps switch off automatically in the event of dry running or blockage, preventing damage to the unit.
Thanks to the OASE Control System connection (EGC), the pump can be conveniently controlled either via the OASE Eco Control or from the home network via app and combined with other EGC-capable devices with the OASE Garden Controller Cloud.
SpecificationsÂ
| Product Number |
02OD048 | 77462 |
| Rated voltage + frequency |
220 – 240 V / 50/60 Hz |
| Power consumption – W |
100Â –Â 730 W |
| Power cable length – m |
10 m |
| Net weight |
18Â kg |
| Guarantee (+ request guarantee) – years |
3 + 2 Years |
| Max. flow rate per minute |
1350Â l/min |
| Max. flow rate – l/h |
81000 l/h |
| Max. head height, metres |
5.5Â m |
| Connection pressure-side |
GÂ 3 |
| Connection sunctions-side |
GÂ 3 |
| Max. coarse debris displacement – mm |
6 mm |
| Connection EGC |
Yes |
| Electronic adjustment |
Yes |
| Setup type |
Can be set up underwater & dry installed |
